How to select the right 99% alumina ceramic tube for your application

You want to choose the right 99% ceramic tube for your project. Matching the properties of a 99% ceramic tube to your application ensures top performance and longer service life. Many industries prefer 99% ceramic tube because of its high purity, mechanical strength, and thermal stability. Over 55% of industrial applications use these tubes for their superior electrical insulation, thermal stability, and chemical resistance. The table below shows how each property of a 99% ceramic tube can impact performance in demanding environments.

Key Takeaways

• Choose 99% alumina ceramic tubes for high-performance applications. They offer superior mechanical strength and thermal stability.

• Match the tube's properties to your specific application needs. Consider factors like chemical resistance and operating temperature.

• Verify dimensions and tolerances to ensure a proper fit. This prevents leaks and misalignment in your systems.

• Select a reliable supplier who provides quality assurance and technical support. This ensures you receive the best product for your needs.

• Evaluate your budget against performance requirements. Higher purity grades may cost more but offer better reliability in demanding environments.

99% Ceramic Tube: Purity & Key Properties

High Purity Alumina Structure

You need to understand what makes a 99% alumina ceramic tube stand out. Purity is the most important factor. High purity alumina contains at least 99% aluminum oxide. This purity grade gives the tube a dense structure and very low porosity. You can see the difference in the table below:

Ultra high purity alumina is essential in industries like semiconductors and medical devices. You get superior insulation and chemical inertness. The risk of ion migration or contamination drops. You protect performance in critical applications. For example:

• Semiconductor wafers and boats require ≥99.7% purity.

• Medical sensor tubes need ≥99.5% purity.

• Analytical furnace tubes demand ≥99.7% purity.

• Industrial feed-throughs use 95%–99% purity.

High purity alumina ceramic tubes have a strong crystalline lattice. This structure resists corrosive gases and molten metals. You get non-porous, gas-tight tubes. Lower purity alternatives have higher thermal expansion and lower mechanical strength.

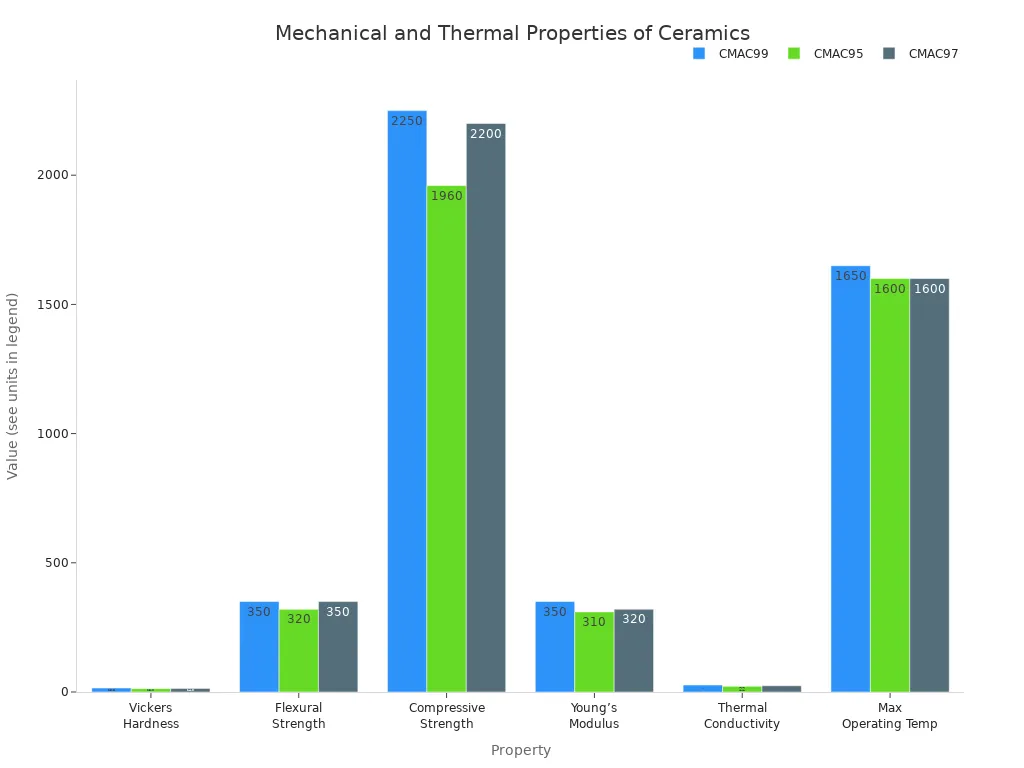

Mechanical & Thermal Performance

You benefit from high purity alumina ceramic tubes because they deliver exceptional mechanical and thermal properties. The crystalline structure provides hardness and strength. The table below compares different purity grades:

High purity alumina maintains strength and stability up to 1,650–1,700 °C. You avoid softening or corrosion. The material resists oxidation and corrosion in harsh environments. You preserve mechanical and electrical properties over time. High dielectric performance makes these tubes ideal for electrical insulation. You also get excellent wear resistance and chemical resistance. These features ensure reliability in demanding applications.

Application Needs & Tube Selection

Matching Alumina Ceramic to Use Case

You need to match the properties of alumina tubes to your specific applications. Each industry relies on unique features of alumina to solve technical challenges. You see alumina tubes used in high-temperature furnaces, tube furnaces, chemical processing, semiconductor manufacturing, and advanced materials research. The table below shows how these applications benefit from the material’s properties:

You select alumina tubes for their ability to withstand extreme heat and aggressive chemicals. You protect sensitive components in semiconductor manufacturing by using high-purity alumina. You maintain controlled atmospheres in chemical processing with non-reactive tubes. You rely on alumina for advanced materials research because it prevents contamination and preserves sample integrity.

When you compare alumina grades, you notice that higher purity offers better performance in demanding applications. The table below helps you decide which grade fits your needs:

You choose 99% alumina tubes for high-temperature processing and aerospace applications. You select 99.7% alumina for semiconductor and chemical processing, where purity and chemical resistance matter most. You use 95% alumina for basic furnace work when cost is a priority.

You must consider several factors when matching alumina tubes to your use case:

• Chemical resistance: You need tubes that handle acids and solvents without contamination.

• Durability under mechanical wear: You reduce replacement cycles by choosing tubes with high hardness and abrasion resistance.

• Thermal stability: You maintain tube integrity under extreme temperature conditions.

• Application-specific requirements: You check voltage levels and operating conditions for optimal performance.

You evaluate these factors to ensure you select the right tube for your applications. You avoid costly downtime and improve reliability by making informed choices.

Dimensions, Tolerances & Fit

You must pay attention to dimensions and tolerances when selecting alumina tubes. You ensure a proper fit for your applications by specifying the correct inner diameter, outer diameter, and length. You avoid leaks and misalignment by matching tube size to your system requirements.

You check the manufacturer’s datasheet for standard sizes and tolerances. You request custom dimensions for precision applications, such as analytical instruments or semiconductor processing. You verify tolerances to guarantee compatibility with fittings and seals.

You follow these steps to select the right tube size:

1. Measure the required inner and outer diameter for your application.

2. Specify the length based on installation space and process needs.

3. Confirm tolerances with the supplier to ensure a tight fit.

4. Request a test certificate to verify dimensions and purity.

Tip: You improve performance in precision applications by choosing tubes with tighter tolerances and higher purity. You reduce contamination risk and achieve consistent results.

You avoid problems by checking the fit before installation. You use calipers or micrometers to measure tube dimensions. You consult with technical experts for complex systems or unique requirements.

Operating Environment Factors

You must consider the operating environment when selecting alumina tubes. You evaluate temperature, chemical exposure, and mechanical stress to ensure long-term reliability.

• Alumina tubes maintain strength and chemical stability up to 1,650–1,700°C. You use them in high-temperature furnaces and tube furnaces without worrying about warping or cracking.

• You rely on alumina’s resistance to thermal gradients. You prevent tube failure in high-precision systems by choosing materials that resist cracking and warping.

• You benefit from the material’s smooth, chemically inert bore. You minimize fouling and maintain consistent flow in corrosive environments.

You assess the following environmental factors:

• Maximum operating temperature: You select tubes rated for your process temperature.

• Chemical exposure: You choose alumina tubes for aggressive acids, alkalis, and solvents.

• Mechanical stress: You pick tubes with high hardness and abrasion resistance for demanding applications.

You protect your equipment and processes by matching tube properties to environmental conditions. You extend service life and reduce maintenance costs by making careful selections.

Note: You achieve optimal performance in precision applications by considering all environmental factors. You consult with suppliers for expert advice on unique or challenging environments.

You make informed decisions by evaluating application needs, dimensions, tolerances, and operating environment. You select alumina tubes that deliver reliability and performance in your industrial applications.

Comparing Alumina Grades & Purity Levels

99% vs Lower Purity Alumina

You need to understand how different grades of technical grade alumina affect performance and cost. When you compare 99% alumina tubes to lower-purity options, you see clear differences in mechanical strength, thermal stability, and electrical properties. Technical grade alumina with 99% purity contains fewer impurities, which means fewer secondary phases and improved electrical performance. You get greater stability at higher temperatures and better handling of repeated thermal cycling.

Here is a table that shows the differences between 99% alumina tubes and lower-purity alumina tubes:

You benefit from a nearly fully dense structure with porosity below 0.1%. Technical grade alumina offers excellent high-temperature creep resistance and an ultra-smooth surface finish. You find these tubes in LED substrates and furnace heater supports. Lower-purity alumina tubes cost less, but you sacrifice performance and reliability.

Tip: You choose 99% purity when you need gas-tight tubes for controlled atmospheres. You avoid costly failures in demanding environments by selecting technical grade alumina.

When to Choose High-Purity Alumina

You select high-purity alumina tubes for critical applications. These tubes excel in high-temperature environments because they maintain stability and resist degradation. You rely on their mechanical strength in settings with physical stress. High-purity alumina provides chemical resistance, which is essential when you work with reactive substances.

You should choose high-purity alumina in these scenarios:

• High-temperature applications where thermal stability matters most

• Demanding environments that require excellent mechanical strength

• Processes involving aggressive chemicals or reactive substances

Technical grade alumina with high purity ensures durability and consistent performance. You protect sensitive equipment and maintain process integrity. You avoid contamination and extend service life by choosing the right grade for your needs.

Note: You consult with suppliers when you face unique or challenging requirements. You verify purity and technical grade alumina specifications to match your application.

Cost, Compatibility & Supplier Tips

Balancing Performance & Budget

You want to get the best value when choosing a 99% alumina ceramic tube. Performance matters, but you also need to consider your budget. Alumina tubes offer a cost-effective solution for many industrial needs. You benefit from their hardness, wear resistance, and chemical stability without paying the premium price of alternatives like zirconia. When you select the right purity grade, you match your application’s demands while controlling costs.

• You use alumina grinding media for a balance of durability and affordability.

• You choose 99% alumina for mid-grade operations where high wear resistance is needed, but extreme purity is not required.

• You save money compared to higher-cost ceramics, yet still achieve reliable performance.

Tip: Review your process requirements and compare them to the properties of each alumina grade. This helps you avoid overspending on unnecessary features.

Material Compatibility

You must ensure that your alumina ceramic tube matches the chemicals, temperatures, and mechanical stresses in your process. Alumina’s chemical stability makes it compatible with acids, alkalis, and many solvents. You avoid contamination and equipment failure by checking compatibility before installation.

• You select tubes with the right purity for your chemicals.

• You verify that the tube’s maximum temperature rating meets your process needs.

• You check for compatibility with seals, fittings, and other system components.

Note: For unique or demanding environments, consult with technical experts. They can help you choose the best tube for your specific requirements.

Choosing a Reliable Supplier

You need a supplier who provides consistent quality and technical support. High-purity alumina tubes play a critical role in industries like battery materials and semiconductor research. You rely on strict quality assurance to maintain process reliability and product purity.

• You look for suppliers who offer certification and test reports for each batch.

• You choose suppliers with a reputation for delivering dense, impurity-free tubes.

• You ask about quality control processes and customer support.

Tip: Always request documentation and consult with your supplier for critical applications. This ensures you receive tubes that meet your exact specifications.

You make the best choice by matching tube properties to your application. This ensures reliability and safety. Review the key parameters below:

Consider these steps before you decide:

• Check purity and mechanical strength.

• Confirm dimensions and tolerances.

• Evaluate chemical and thermal requirements.

• Choose a supplier with strong technical support.

You improve system performance by selecting the right 99% alumina ceramic tube for your needs.

FAQ

What makes a 99% alumina ceramic tube different from other ceramic tubes?

You get higher purity, better mechanical strength, and improved chemical resistance with a 99% alumina ceramic tube. This tube works well in high-temperature and corrosive environments. Lower-purity tubes may not offer the same reliability or performance.

Can you cut or machine a 99% alumina ceramic tube?

You cannot cut or machine these tubes easily with standard tools. Alumina is very hard and brittle. You should order tubes in the exact size you need. Ask your supplier about custom dimensions before purchasing.

How do you clean a 99% alumina ceramic tube?

You can clean the tube with mild acids or solvents, depending on your application. Rinse with distilled water and dry thoroughly. Avoid using metal brushes or abrasive tools. These can scratch the surface and reduce performance.

What industries use 99% alumina ceramic tubes?

You find 99% alumina ceramic tubes in semiconductor manufacturing, chemical processing, high-temperature furnaces, and laboratory research. These tubes protect sensitive components and maintain purity in demanding environments.

How do you verify the quality of a 99% alumina ceramic tube?

You should request a test certificate from your supplier. Check for purity, density, and dimensional tolerances. Reliable suppliers provide documentation and technical support for every batch.
